SHW® Floor Drain

"SHW" Floor drains are made of selected materials and strict quality control procedures are adhered to.

SHW® FLOOR DRAINS Catalogue vol.42

Catalog

Contents

-SAKURA Series(Stainless Cover & ABS Body)

-Traditional Type(Stainless or Brass + CP Body)

-Round Type(Stainless or Brass + CP Body)

-Stainless Flexible Tube Connector

-Drain Unit

-Hi-Drain Series

SAKURA Series Stainless Steel Top (with "SHW " mark) + Strong ABS Core
Push Fit Type(PF) EN1253-2 for 4"
(Material) Metal Parts: 304 or 316, Core: ABS

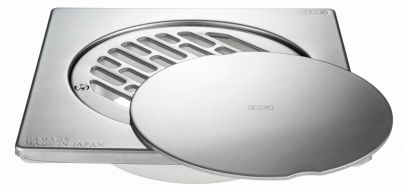

H-514-WT-PF-SS-ABS
Grate and Loose Cover Type Floor Drain

SIZE : 150sq x 4"

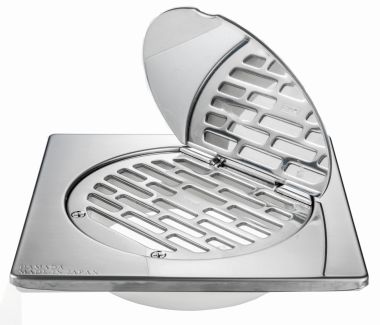

H-514-WT-PF-SS-HG
Grate and Hinged Cover Type Floor Drain

SIZE : 150sq x 4"

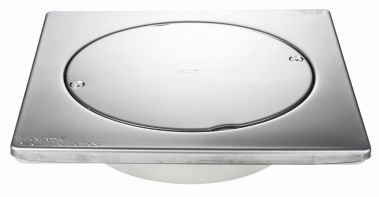

H-512-PF-SS-ABS
Clean Out Type

SIZE : 150sq x 4"

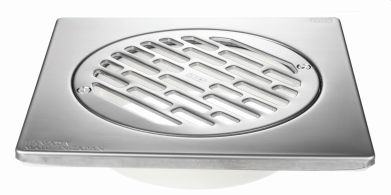

H-397-PF-SS-ABS
Grating Type

SIZE : 150sq x 4"
         79sq x 2"

Traditional Brass & Stainless Steel (with "SHW " mark) Push Fit Type(PF) EN1253-2 for 4"
(Material) Brass + Chrome Plating, 304, 316

Model Execution

H-397-PF
SQUARE TYPE GRATING SCREWED GRATING TYPE

SIZE : 79sq x 2"
        109sq x 3"
        150sq x 4"

H-512-PF
SQUARE TYPE CLEANOUT SCREWED BLIND COVER TYPE

SIZE : 79sq x 2"
        109sq x 3"
        150sq x 4"

H-514-WT-PF
SQUARE TYPE LOOSE GRATE & COVER TYPE

SIZE : 79sq x 2"
        109sq x 3"
        150sq x 4"

Traditional Brass & Stainless Steel (with "SHW " mark) Push Fit Type(PF) Round type
(Material) Brass + Chrome Plating, 304, 316

H-395-PF
GRATING

SIZE : 1_1/2"-6"

H-340-PF
CLEAN OUT

SIZE : 1_1/2"-6"

H-341-PF
GRADING with WIDE FLANGE

SIZE : 1_1/4"-6"

H-342-PF
CLEAN OUT with WIDE FLANGE

SIZE : 1_1/4"-6"

H-394-PF
GRATING with P-TRAP

SIZE : 75x1_1/2", 100x2"

ROUND SHAPE TOP GRATING SCREWED

SIZE : 1_1/4"-12"

ROUND SHAPE TOP CLEAN OUT with SCREWED BLIND COVER SCREWED

SIZE : 1_1/4"-12"

INSECT PROOF GRATING w/ SS MESH SCREWED

SIZE : 1_1/4"-8"

AIR VENT CAP & VENTILATOR
